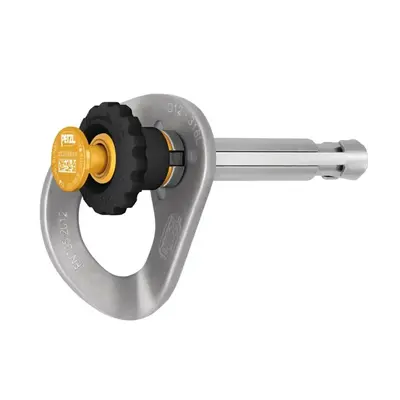

Description
- Easy to use:
- - Quick and simple to install and remove without tools, so it can be reused
- - Locking function limits the risk of accidental removal
- - The locking knob is easy to handle, even with gloves
- - COEUR hanger can rotate for better alignment when the anchor is being installed or when it is laterally loaded during use
- Easy to clip:
- - Wide, ergonomic hanger opening makes it easier to clip a carabiner
- - Hanger opening is wide enough to accommodate two carabiners at the same time
- Thickness and rounded edges of the COEUR hanger help reduce wear on carabiners
Note: For optimal use of the anchor, the drilled hole must be perfectly cylindrical. To achieve this, opt for a drill bit with four cutting edges.
Specifications
- Material(s): Stainless steel, plastic
- Certification(s): CE EN 795 B, CE EN 959, UKCA, TS 16415
- Diameter: 12 mm
- Weight: 140 g
- Drilling depth: 6.5 cm
- Drilling diameter: 12 mm
- Shear strength in 50 MPa concrete: 25 kN
- Pull-out strength in concrete 50 MPa: 20 kN
- Shear strength in 25 MPa concrete: 25 kN
- Pull-out strength in concrete 25 MPa: 20 kN
