Description

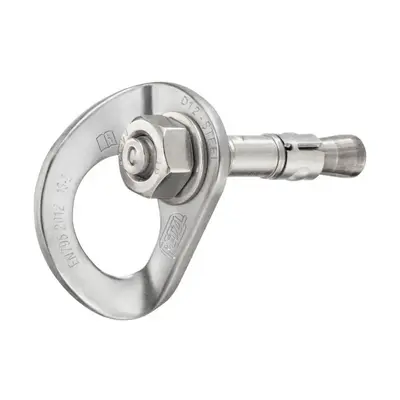

  • HCR 904 (High Corrosion Resistance) stainless steel assembly designed for corrosive environments, made up of a COEUR HCR hanger, a bolt, and a nut
  • Easy to clip:
  • - the wide, ergonomic connection point facilitates carabiner clipping
  • - the width of the attachment point allows installation of two carabiners at the same time
  • Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • COEUR HCR hanger for 12 mm diameter bolt (P36AH 12), available separately

Specifications

  • Material(s): 904 HCR (High Corrosion Resistance) stainless steel
  • Certification(s): EN 959
  • Diameter: 12 mm
  • Total bolt length: 85 mm
  • Weight: 145 g
  • Drilling diameter: 12 mm
  • Shear strength in 50 MPa concrete: 25 kN
  • Pull-out strength in concrete 50 MPa: 18 kN
